FARIZON H9E
The Farizon H9E is a versatile commercial vehicle with a single-row cabin, accommodating up to three passengers. It offers flexible cargo configurations with dimensions ranging from 5995×2350×3080mm to 5995×2100×3080mm. The cargo area comes in various sizes, featuring internal dimensions like 4020×2200×1900mm and 4020×2050×2000mm.
Powered by a GAPF range extender and a 54.72kWh Guoxuan lithium iron phosphate battery, the H9E provides a driving range exceeding 600km. Charging options include a 6.6kW slow charge. The chassis features a longitudinal leaf spring and cylindrical shock absorber suspension, front and rear drum brakes with ABS, and a pneumatic brake system.

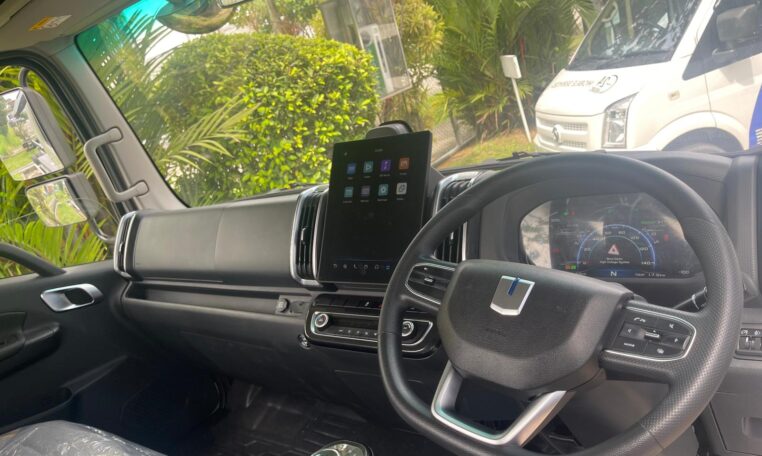

Externally, the H9E is available in Quartz white, and safety features include adjustable headlights, automatic daytime running lights, reversing radar, and reverse image capability. Interior features comprise a 7-inch LCD meter, central control door lock, electric windows, and an electric air conditioner.
Safety mechanisms include a warning triangle, fire extinguisher, and remote lock car with T-BOX tamper-proof technology. The H9E is equipped with a refrigerator and has a maximum design total mass of 6000kg, achieving a maximum speed of 90km/h.
- There are no features available
Configuration Cabin Width 1995mm ● Wheelbase 3360mm ● Cabin Type single row ● Passengers 3 ● Dimension Van 5995×2350×3080mm ● Corresponding cargo box width 2200mm, height 1900mm 5995×2350×2980mm ○ Corresponding cargo box width 2200mm, height 1800mm 5995×2350×3280mm ○ Corresponding cargo box width 2200mm, height 2100mm 5995×2200×3180mm ○ Corresponding cargo box width 2050/2020mm 5995×2100×3080mm ○ Corresponding cargo box width 1950/1920mm Cargo Internal Dimension Single row 4020×2200×1900mm ● The thickness of the side board of the top is 70mm 4020×2050×2000mm ○ The thickness of the side board of the top is 70mm 4020×2020×2000mm ○ Upper side board thickness 80mm 3900×2020×2000mm ○ Upper side board thickness 80mm 4020×1950×1900mm ○ The thickness of the side board of the top is 70mm 4020×1920×1900mm ○ Upper side board thickness 80mm 4020×2200×2100mm ○ The thickness of the side board of the top is 70mm 4020×2200×1800mm ○ The thickness of the side board of the top is 70mm Quality parameter Total Quality - Announcement 4495kg ● Power system Range extender Type GAPF ● 1477ml/60kW Fuel supply system Tank Volume 60L ● Gas tank, 92# Motor Motor brand Jiangsu Yidong ● Rated power / maximum power 50/100kW ● PMSM Power Battery Capacity 54.72kWh ● Guoxuan, Lithium Iron Phosphate 53.58kWh ○ Yiwei, lithium iron phosphate Charge Full / ● Slow charge 6.6kW ○ OBC Chassis Front/rear suspension Type Longitudinal leaf spring + cylindrical shock absorber 3/3+3 pieces ● Few leaf spring Longitudinal leaf spring + cylinder shock absorber 8/8+7 pieces ○ Multi-leaf spring Front/rear axle Specification 2500/4000kg ● Tire Specification 7.00R16 ● Tubeless, steel Spare tire Full-size spare tire ○ Steering system Type Electric hydraulic steering system ● EHPS Service brake system Type Pneumatic brake ● Air brake Brake Front and rear drum brakes + ABS ● Front disc and rear drum brake + ABS ○ Brake energy recovery system ● Parking brake system Type Spring energy storage ● Electronic handbrake EPB+Auto Hold ● Exterior Body Quartz white / ● Customer Color Choice - Accepeted Vision Headlight Height - Adjustable ● Automatic ● Daytime running lights LED ● Interior Rearview Mirror / ○ Exterior Rearview Mirror Heating defrost function ○ Wiper Bone wiper ● Boneless wiper ○ Other Skylight Top ventilation ○ Interior Meter 7 inch LCD ● Switch Central control door lock + electric doors and windows ● Folding remote control key + mechanical spare key + manual start ● Smart key + one-key start ○ EPB+ knob shift ● Air conditioner Electric air conditioner ● Entertainment Interactive System USB+8 inch central control large screen ● Car navigation ○ Mechanism Safety Reversing radar ● Reverse image ● Blind spot monitoring ○ Tire pressure monitoring ○ Remote lock car ● T-BOX tamper proof Other Warning triangle / ● Fire extinguisher / ● ETC / ○ Tops Refrigerator Brand Zhengzhou Kaixue, Henan Bingxiong, Guangzhou Shengxue, Shanghai Ingersoll Rand, Shenzhen Invic, Chongqing Dike, Kunshan Rambo, Shanghai Chaoqiang, Zhengzhou Xueyuan, Shanghai Kallang Songzhi Box Volume 14.5m³ ~ 18.6m³ Main performance parameters Maximum design total mass 6000kg Maximum speed 90km/h 0～50km/h acceleration time <10s Maximum grade ≥20% Driving range ＞600km
Fuel Efficiency Rating
- City: N/A
- Highway: N/A
Actual rating will vary with options, driving conditions, driving habits and vehicle condition.
